Description
New Hybrid - Updated Tri-Optic Design
Take Command of the Night with Wider Coverage and Further Distance

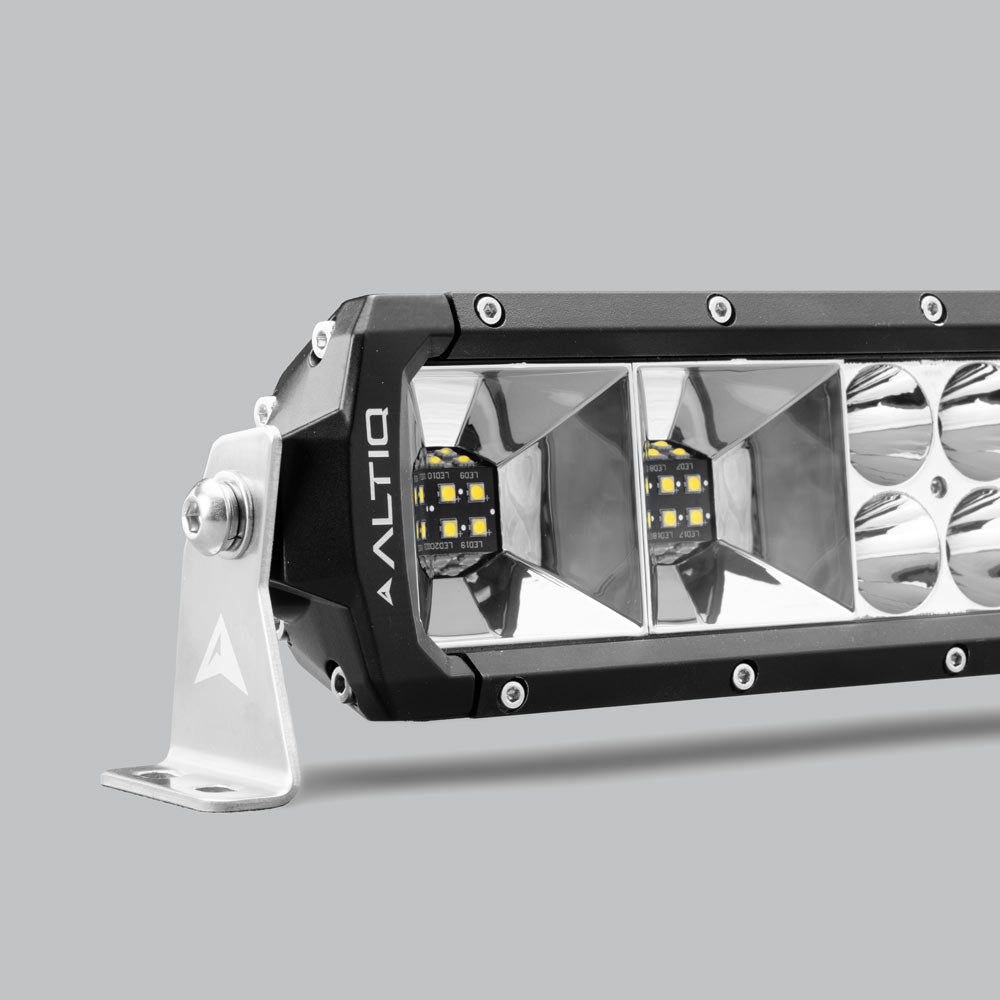

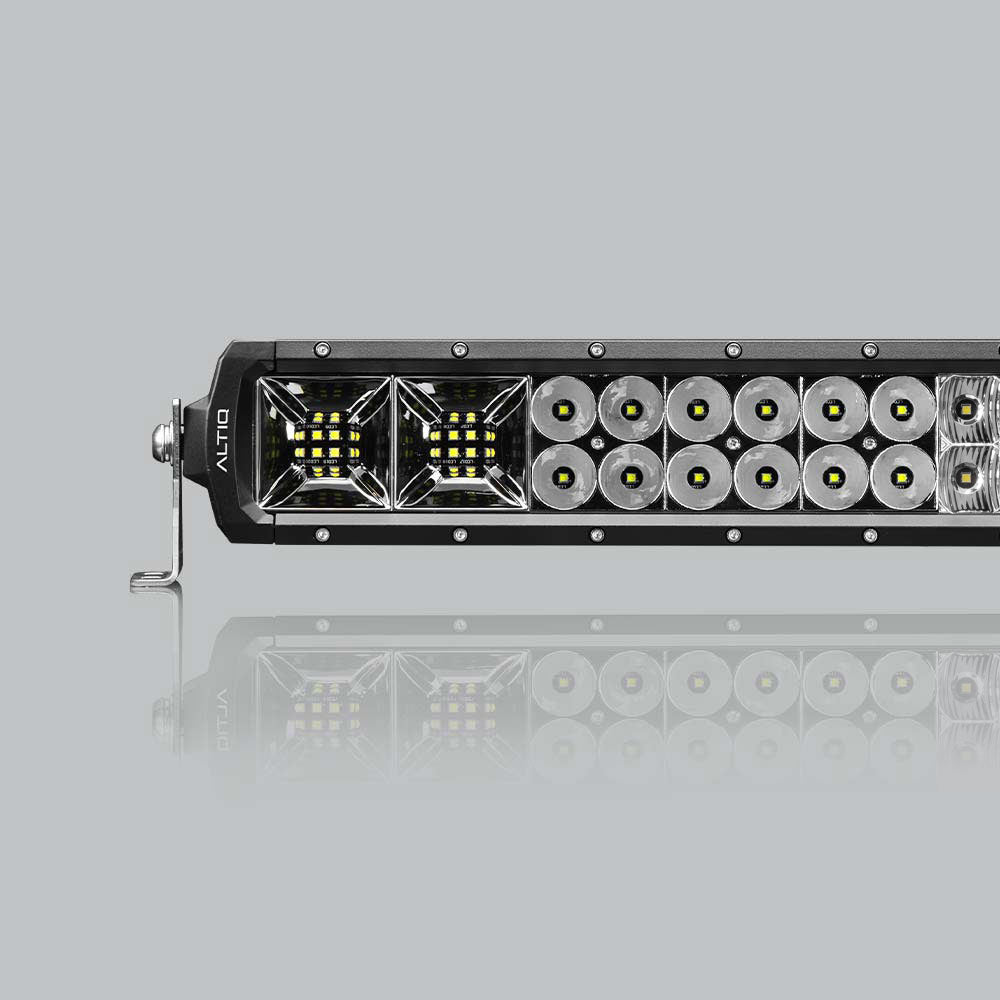

Reaching wider and further, the Hybrid features a new Tri-Optic, multi-pattern reflector design that achieves superior visibility with leading optic efficiency. An evolutionary step in design that boasts a wider flood angle for the widest tracks and further distance on long high ways.
Tri Optical Beam Pattern
- 5° Hyperspot - Distance
- Combo - Centre Spread Flood
- Scene - Ultra Wide Flood
Built for tough conditions and made to last, the Hybrid series benefits from a renowned Altiq 10 Year Warranty which is made possible by utilising the highest quality components from world-leading brands such as General Electric, DuPont, Vishay, Osram and more!
- 4 x Scene Reflectors - Ultra Wide Flood Output

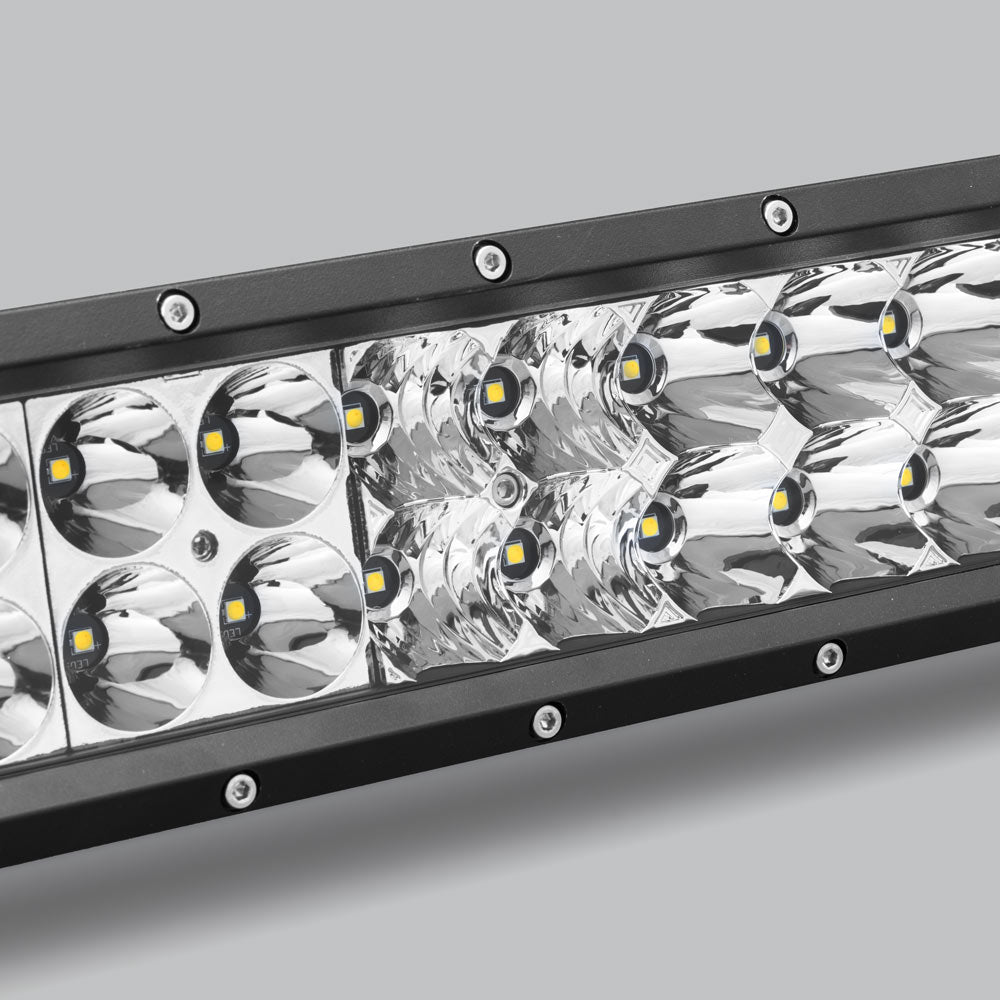

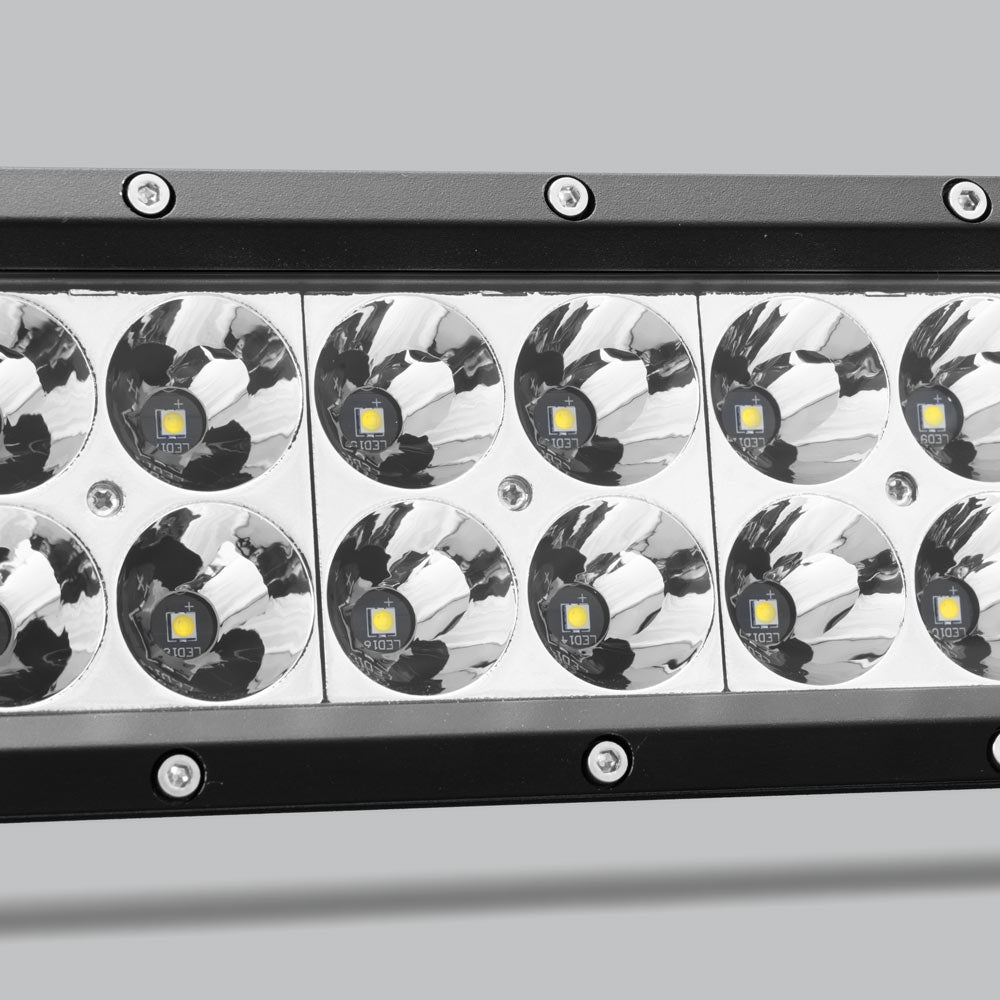

- 5° Hyper spot + wide spread flood parabolic reflectors - Seamless flood to Spot Output

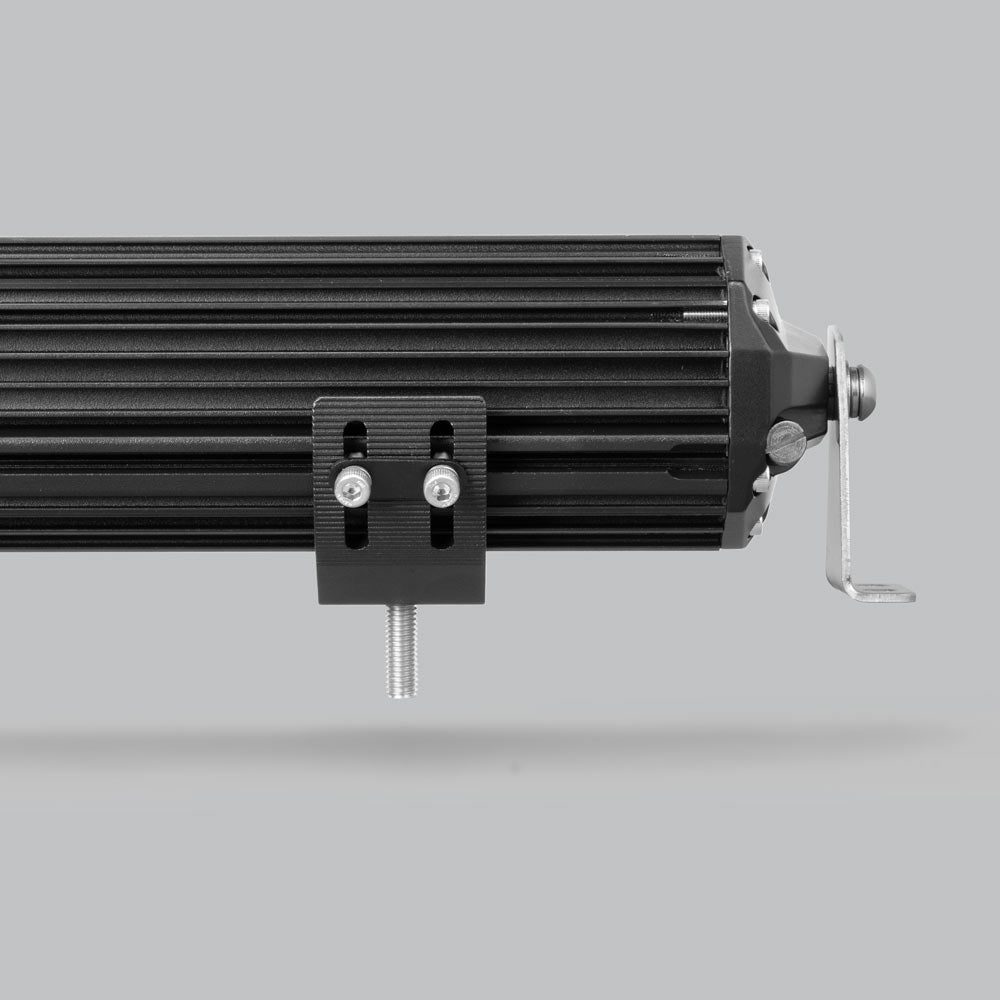

- Side and Undermounts Included - Mount Anywhere
- IP69K Waterproof - Highest Dust & Waterproof Rating - Pressure wash safe.
- General Electric Lexan lens - Near Indestructible lens that stays clear as intended and does not haze over or yellow. No protective covers needed.
- DuPont black paint - Black that stays black - highest chip resistant coating.
- Gore-Tex breather valve - 100% pressure equalisation and moisture venting.
- Marine Grade 316 Stainless bracket - more rigid and durable
- CISPR 25 Class 3 Certified - Zero Radio/communication interference.
- 5700 Kelvin colour temperature - Daylight equivalent for low eye strain.
- Fast Fit Wiring Harness - Easy plug and play installation.
- 10 Year Warranty - No strings, our Light Bars are made to last!
Specifications
LUX DISTANCE | 1 LUX @ 878M |
LUMENS | 14850 |
LENS | GE Lexan Lens 3mm - Indestructible |
LEDs | 60 X Genuine 5W OSRAM P9 Chips |
FINISH | DuPont Midnight Paint |
FASTENERS | 316L Marine Stainless |
WATERPROOF RATING | IP68 - IP69K |
WARRANTY | 10 Years |
INPUT VOLTAGE | 10-30V DC |
CURRENT DRAW | 11.33A @12V |
INCLUDED WIRING HARNESS | 14 Gauge Dual DT Output, Negative and Positive switched headlight compatible |
COLOUR TEMPERATURE | 5700K @ 82+ CRI |
WEIGHT | 2.48KG (including brackets) |
