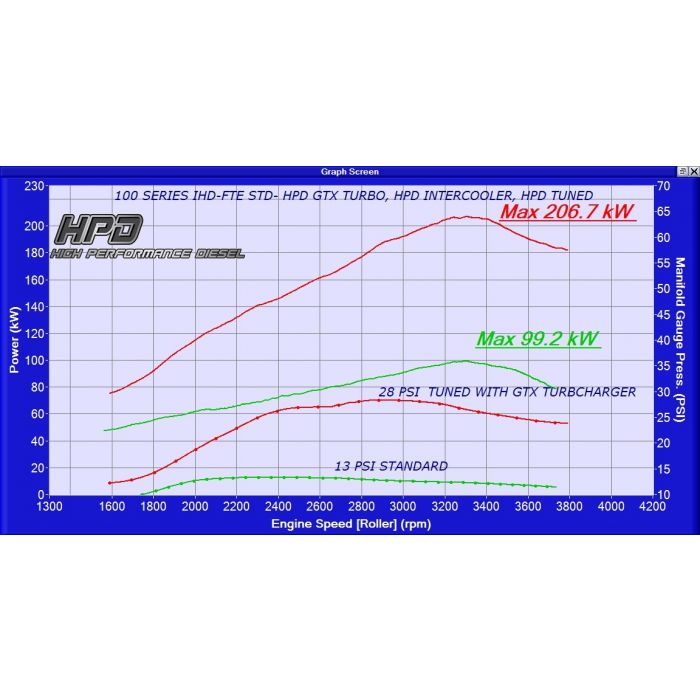

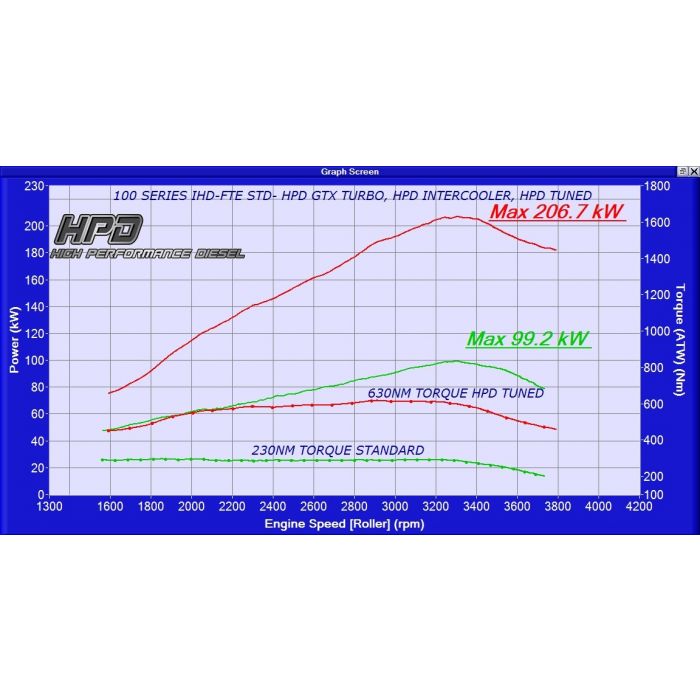

This intercooelr kit is to suit a 105 series chassis that was a factory 1HZ that has been converted to a 1HD-FTE Motor. This comprehensive Series 2 HPD intercooler kit has been designed with shorter pipe work which runs directly from the intercooler to the turbocharger and inlet, due to the direct path we provide a replacement TIG welded aluminum radiator overflow bottle. This kit has the option of a transmission cooler for automatic modles. This kit will see and maintain safe power levels up to 200kw’s at the wheels with supporting modifications and tuning.

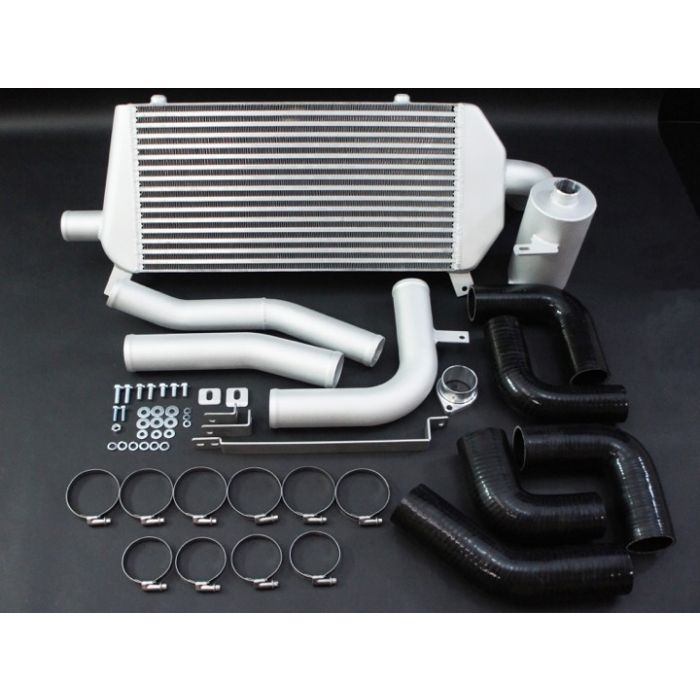

Kit features:
- To suit 105 1HZ to 100 1HDFTE Conversion
- Bar & Plate Core 500x275x76mm
- Alloy mandrel bent piping
- Lasercut mounting brackets
- Quality silicone hoses
- german made load rated clamps
- Winch & bullbar compatible*
- Hot side piping 51mmø
- Cold side piping 57mmø
- Transcooler is required for automatics
- Transcooler core 400x110x50mm
This product is listed for the following vehicles:
