SUITS ALL 2012-2021 FORD PX RANGERS, EVEREST AND UP/UR BT50

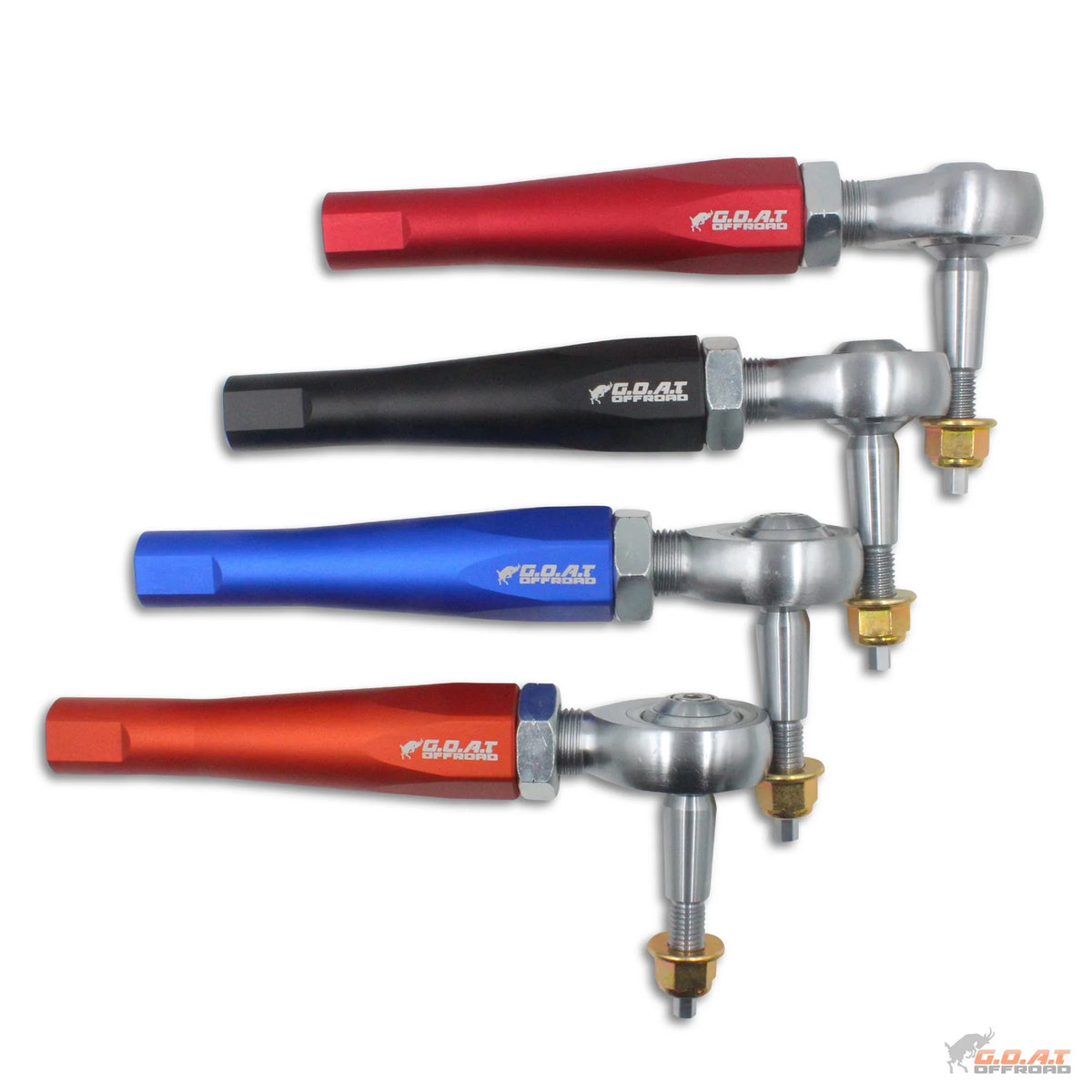

This is the ULTIMATE upgrade to your Ranger steering! This completely replaces your weak factory rack ends and rod ends with our HD, CNC machined parts and high-strength hardware.
Starting at the rack end, GOAT Offroad has a CNC machined clevis, made from 17-4 Stainless steel. This allows GOAT Offroad to fit a super strong heim joint, to ensure more vertical and horizontal movement during the steering arc.
GOAT Offroad alloy extensions are CNC machined from 7075 Aluminium which is used on rockets and shit, so you know it's tough. GOAT Offroad then hard anodize it to keep it looking pretty.
To fit into your spindle, GOAT Offroad machine our tapered misalignments from 17-4 Stainless steel. This is a high-tensile Stainless Steel alloy with excellent corrosion resistance. A 14mm high tensile bolt locks it all together.
To allow maximum articulation, GOAT Offroad has used a massive DFI 7/8 LH Heim joint for smooth, slop-free steering.
GOAT Offroad has used an LH thread on the Heim end, so when your tyre shop is doing an alignment they don't need to remove the pin and save your uprights taper from flogging out.
Finally, you get a nice shiny M12 10.9 nylon flange nut, to ensure you're not left holding the wheel with a loose rod end.
To ensure that your steering rack is kept in tip-top condition, GOAT Offroad also includes a super durable set of universal rack boots.
WHAT'S INCLUDED
- 2x 17-4 Clevis
- 2x 3/4" heims
- 4x 17-4 misalignments
- 2x Anodized alloy steering arms
- 2x 7/8" heims
- 2x 17-4 tapered misalignment pins
- 2x universal stretch steering boots
- All required hardware
DISCLAIMER
By installing this product you understand that this kit is removing the "fuse" in the steering system (factory rack ends are designed to bend in a bind). This means that there is potential for catastrophic damage to occur to the steering rack itself. G.O.A.T Offroad will not be held responsible for any subsequent failures of your factory steering system due to the installation of this product.
