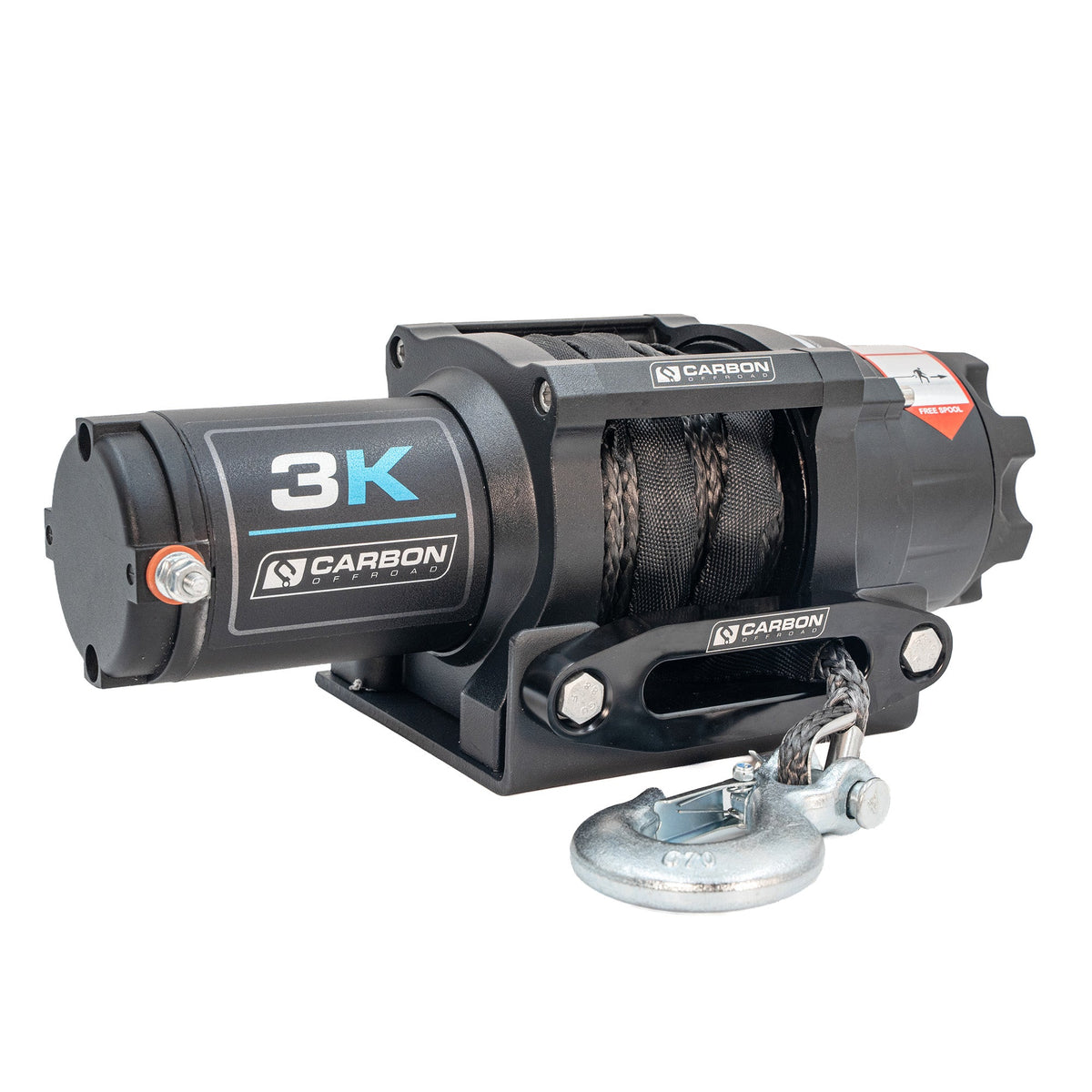

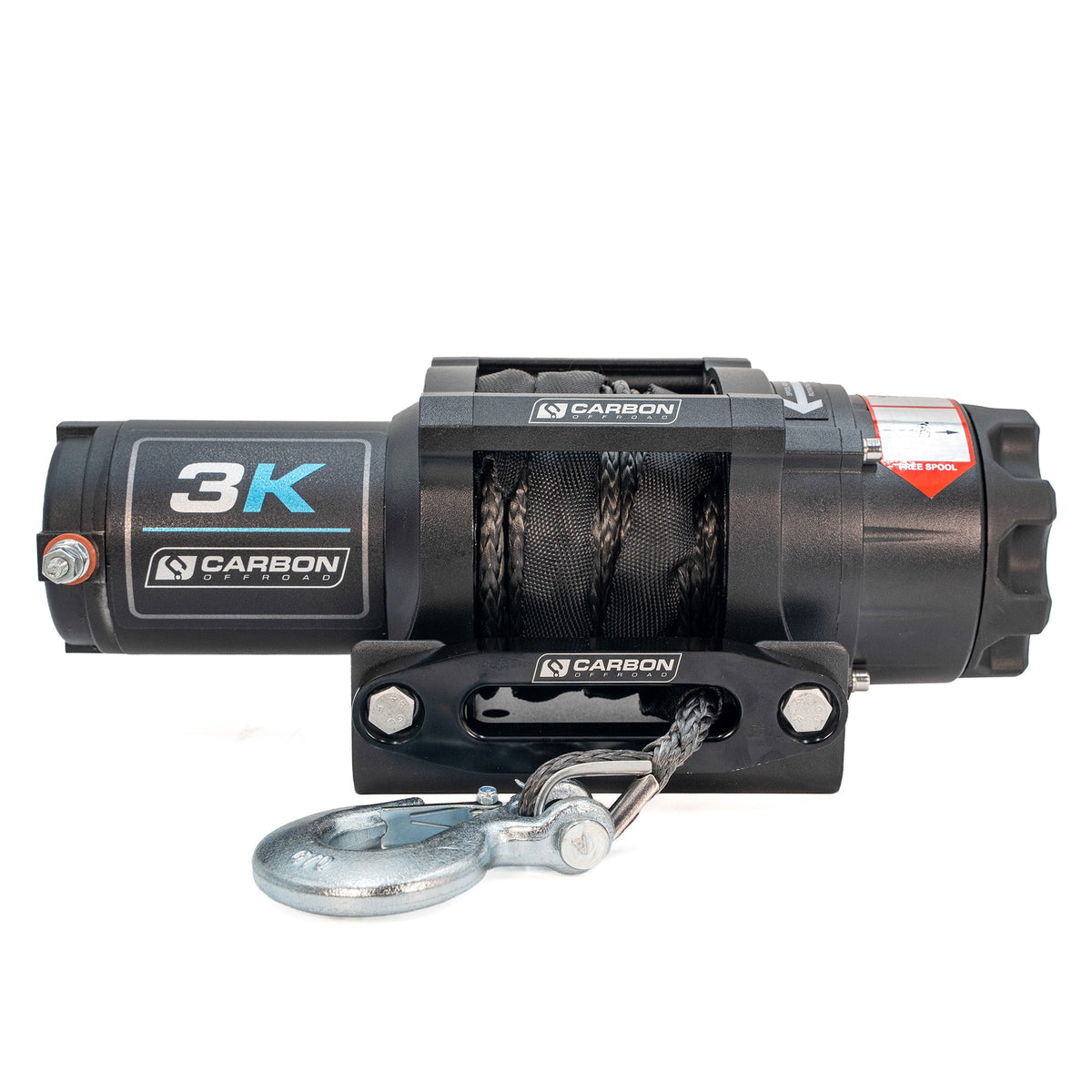

Compact and Reliable Light-Duty Winch
The Carbon CW-3U 3.0K 3000lb Winch delivers exceptional value, combining reliability and premium quality in a compact design. Built for light-duty applications with a 3000 lbs capacity, this winch is engineered to handle a variety of towing and utility tasks effortlessly.
Overview
Designed with convenience in mind, it features both a handheld wired remote and a wireless remote control, allowing seamless operation of the power-in/power-out functions. Enhanced with tie rods for added stability, the CW-3U ensures durability and performance when you need it most.
The Carbon CW-3U is an excellent choice for small trailers, ATVs, and light-duty applications, offering smooth operation, powerful performance, and reliability in a compact package. Upgrade your winching experience with the Carbon CW-3U Winch today!
Features
- Compact Pulling Power: Features a 3000 lbs single-line rated pull powered by a reliable 12V DC, 1.5 HP Permanent Magnet Motor.
- Dual Remote Operation: Comes standard with both a wired remote (with a 6.5 ft / 2m lead) and a wireless remote control for safe, seamless operation.
- Secure Braking: Equipped with a self-locking gear train that provides rated load holding for safety during recovery and loading tasks.
- Synthetic Rope Setup: Spooled with 43 ft of 3/16” (13m x 4.8mm) synthetic rope and paired with a durable roller fairlead.
- Optimised Geartrain: Features a 3-Stage Planetary geartrain with a 153:1 gear ratio and a split ring gear clutch for easy free-spooling.

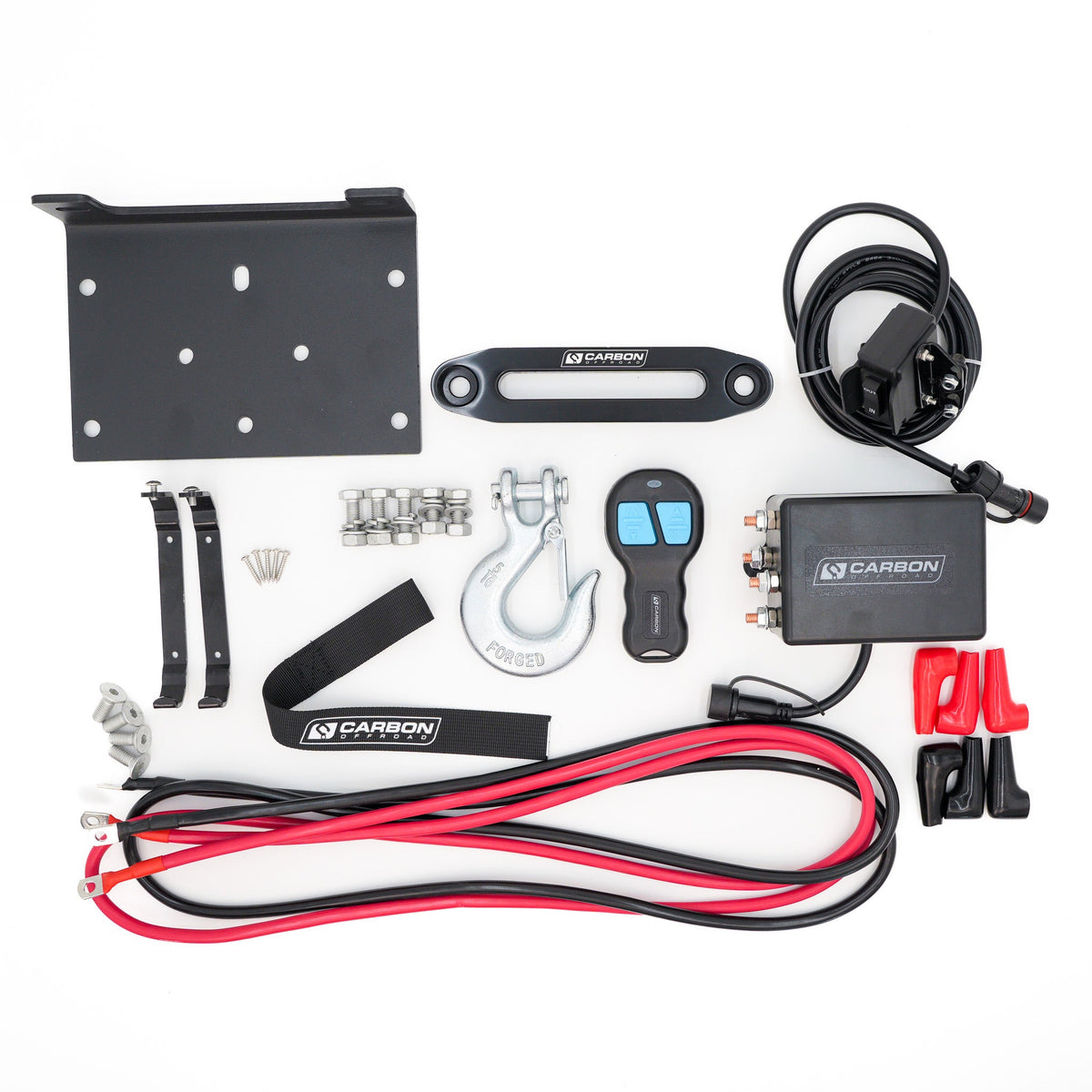

Contents
1 x Carbon CW-3U 3000lb Winch
1 x Synthetic Rope (43 ft x 3/16" / 13m x 4.8mm)
1 x Wired Remote Control (6.5 ft / 2m lead)
1 x Wireless Remote Control
1 x Mounting Hardware Set
| Feature | Specification Metric (Imperial) |
|---|---|
| Part Number | CW-3U |
| Rated Line Pull | 3000 lbs single-line |
| Motor | 12V DC, 1.5 HP Permanent Magnet Motor |
| Geartrain | 3-Stage Planetary |
| Gear Ratio | 153:1 |
| Clutch (Free-Spooling) | Split ring gear |
| Brake System | Self-locking gear train (rated load holding) |
| Drum Dimensions | 32mm x 73mm (1.26" x 2.87") |
| Synthetic Rope | 13m x 4.8mm (43 ft x 3/16") |
| Fairlead | Fairlead Included |
| Mounting Bolt Pattern | 76mm x 124mm (3.0" x 4.87") |
| Winch Dimensions (L x W x H) | 310mm x 127mm x 127mm (12.2" x 5.0" x 5.0") |
| Packing Dimensions (L x W x H) | 400mm x 200mm x 220mm (15.7" x 7.9" x 8.7") |
| Shipping Weight | 10 kg (22 lbs) |
| Fitted Weight | 9 kg (19.8 lbs) |
12V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 20.4 (6.2) | 10 | 1 / 3000 (1360) |
| 1000 (453) | 14.2 (4.3) | 65 | 2 / 2725 (1235) |
| 2000 (907) | 10.9 (3.3) | 96 | 3 / 2480 (1125) |
| 3000 (1360) | 7.7 (2.4) | - | - |
