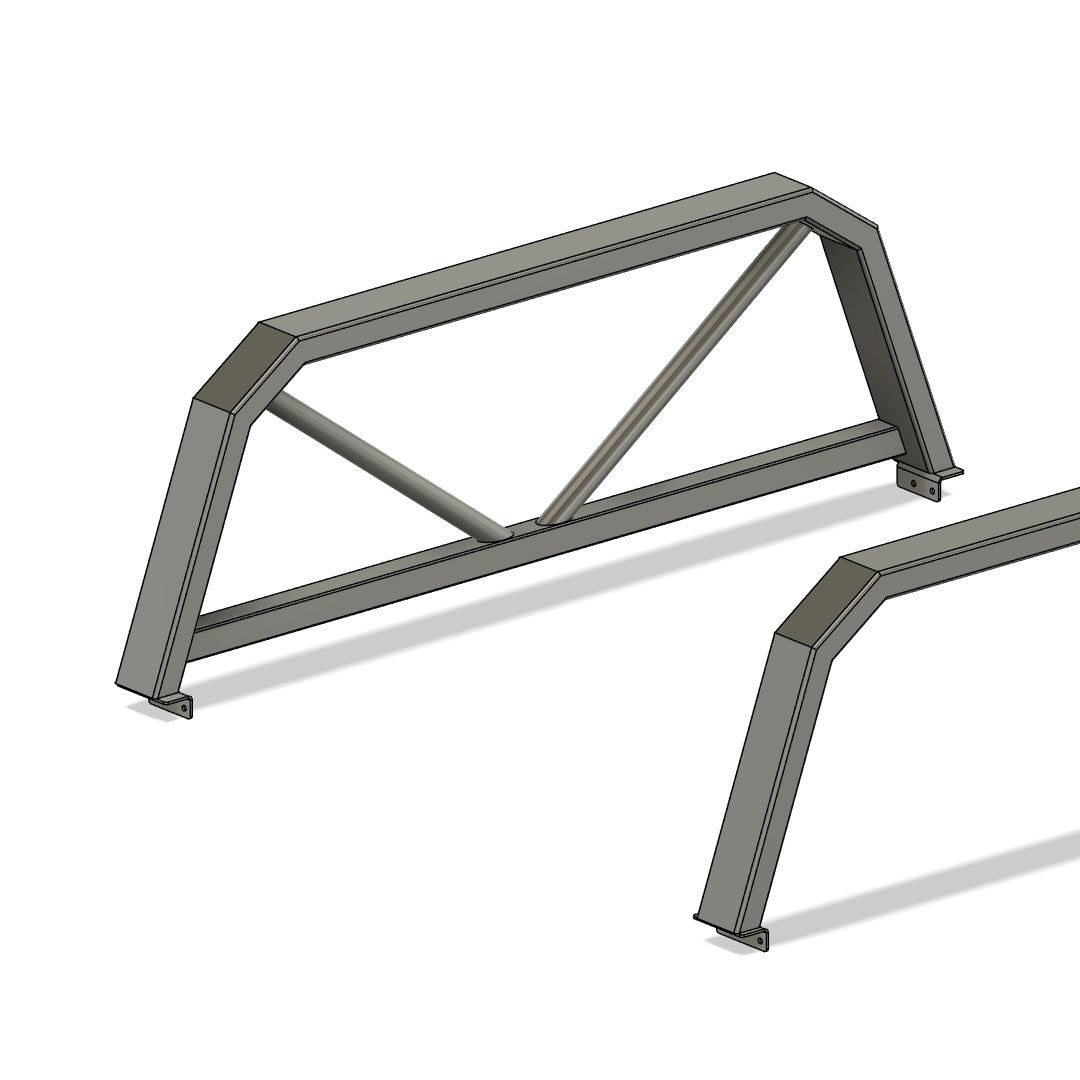

Isuzu RC DMAX Aluminium Tub Racks (2008-2012)

Made for Practicality & Style

All full-height racks sit 50mm above cabin height, giving the ideal balance of function and looks.

Hand built on the Sunshine Coast, every 4x4 Network Tub Rack is TIG welded from locally sourced 3mm marine-grade 6061 aluminium. The result is a lightweight yet durable rack designed to last through harsh conditions.

🚚 Shipping:

We ship to freight depots or business addresses only.
(Depending on the style of tub racks)

🔧 Features:

• (Optional) Headboard Infill with “4x4Network” logo and Molle pattern
• (Optional) Custom logo (e.g. business name, social handle)
• (Optional) Front headboard and/or rear ladder rack can be supplied separately

🎨 Finish Options:

• Raw Aluminium (unpolished)
• Textured Black Powder Coat
• Satin Black Powder Coat

Please note: the raw finish is bare, uncoated manufacturing-grade aluminium. It may show visible marks, scratches, blemishes or tooling lines from the fabrication process. This is normal and part of choosing a raw, industrial finish. If you want a uniform or refined appearance, we recommend choosing a powder-coated finish.

📊 Load Ratings:

• Dynamic Load: 200kg
• Static Load: 350kg
  ⚠️ Please check your vehicle’s manual for the factory tub load capacity. 4x4Network is not liable for tub damage caused by overloading.

🔧 Installation Notes:

• Hole Sizes: Holes are laser cut before powder coating. You may need to drill the powder coat out to 10mm for bolt fitment.
• Foot Plates: Designed for universal fitment. Minor adjustments may sometimes be needed (e.g. die grinding the front holes to line up with factory points).
• Rack Fitment: Because of heat exposure during powder coating (200°C), the rear rack (and front racks with no infill) may membrane inward slightly where there is no crossbar. This is normal, and a push will return it to shape for bolting. It does not affect structural integrity.
• PLEASE NOTE: Load Stops are not compatible for use with roof top tents.

🛠️ These are not defects – just part of proper installation.

📦 Additional Info:

• 1-Year Manufacturing Warranty
• 4-Week Lead Time
• Nutsert tool may be required for install

Optional extras (not included in the price above):

• Cross Bar Infill – $199
• Honeycomb Infill – $199
• Custom Honeycomb Infill – $350
• Rear Visor/Wing - Front Rack – $250
• Rear Visor/Wing - Rear Rack – $250
• Collapsible Load Stops – $300
• Custom Height - (We'll Email You) – $150
• Awning Mount (Passengers Side) – $250
• Awning Mount (Drivers Side) – $250
• Aerial Tab - Front Rack (Passengers Side) – $80
• Aerial Tab - Front Rack (Drivers Side) – $80

To add any of these, list them in the order notes at checkout or contact us before ordering and we will invoice them separately.
