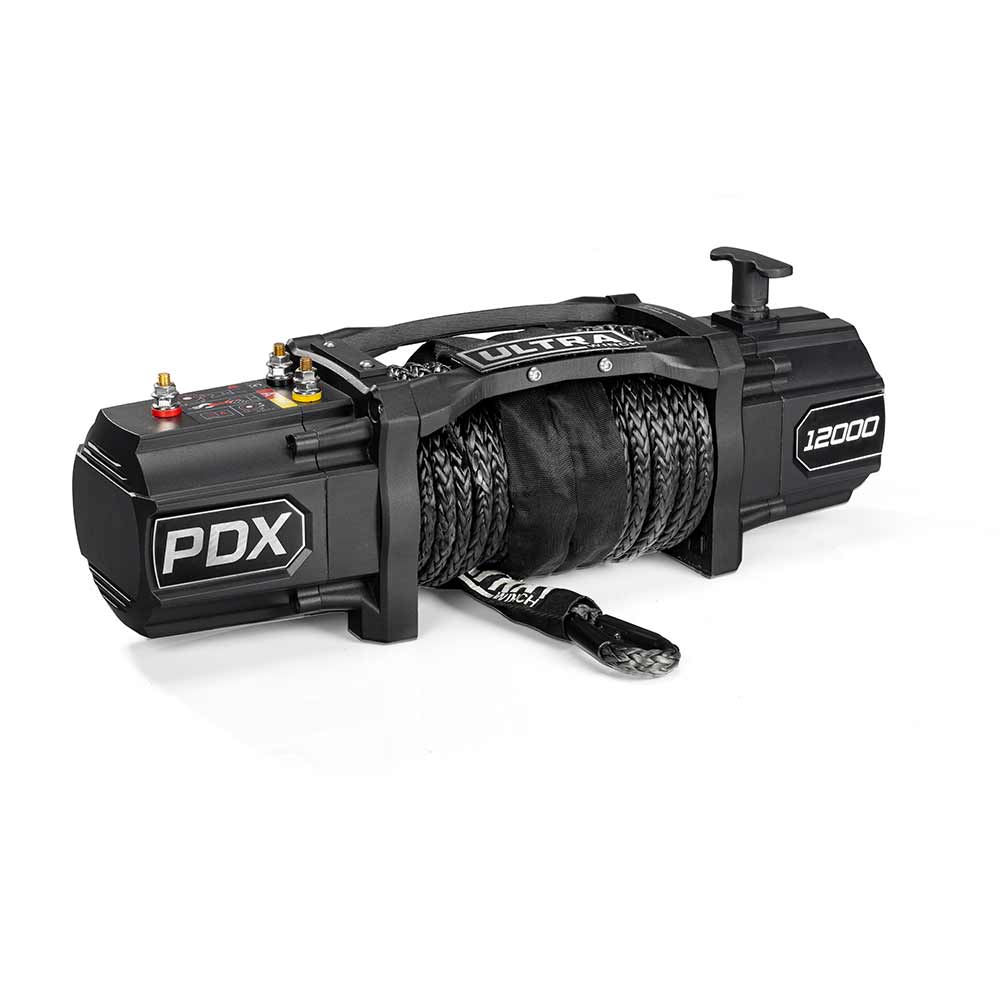

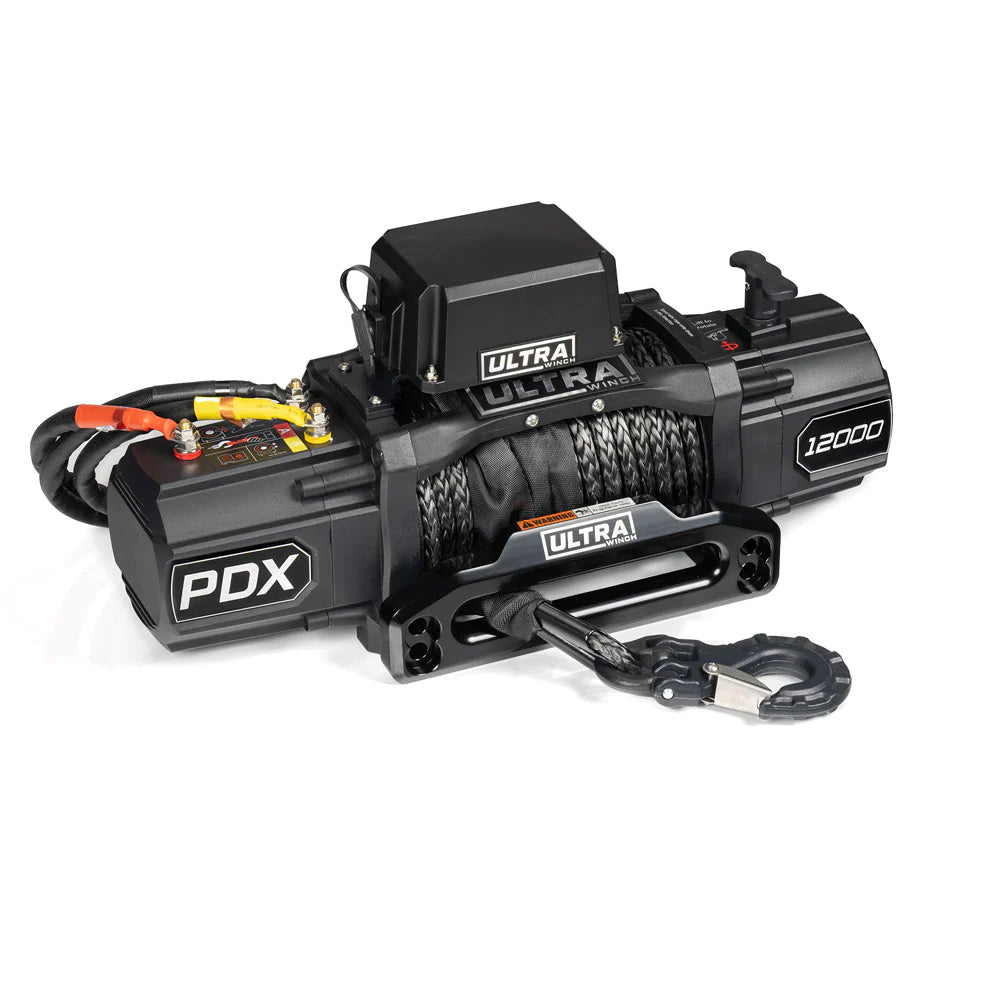

Ultra Winch PDX MK4 PREMIUM ELECTRIC WINCH

PRESSURE FREE POWER - BREATHER KIT.

The included breather valve kit reduces air pressure build up from the 4.8KW motor during hard operation.
Under rapid heating and cooling, conventional fully sealed winches can suffer from a build up in pressure resulting in seal failure.
Fast negative pressure drop is the number one culprit for moisture ingress as a hot winch can easily suck in water when submerged and rapidly cooled. The breather valve kit is a must needed feature for any winch as it eliminates pressure differential ensuring maximum seal protection.

RELENTLESSLY POWERFUL.

The PDX takes an efficient approach to winching, we don't believe in overly high-powered motors which present fast speeds on paper, but in reality induce heat much faster and often strain batteries, overall reducing the duty cycle for a slower overall recovery.

Designed to pull and keep pulling, our custom designed electric motor won't love you and leave you. From the balanced armatures, electroplated planetary gear sets and sealed, high speed bearings, every detail has been engineered to give you maximum performance.
Genuine 6.5HP rated motor (4.8KW). Min battery 650CCA.

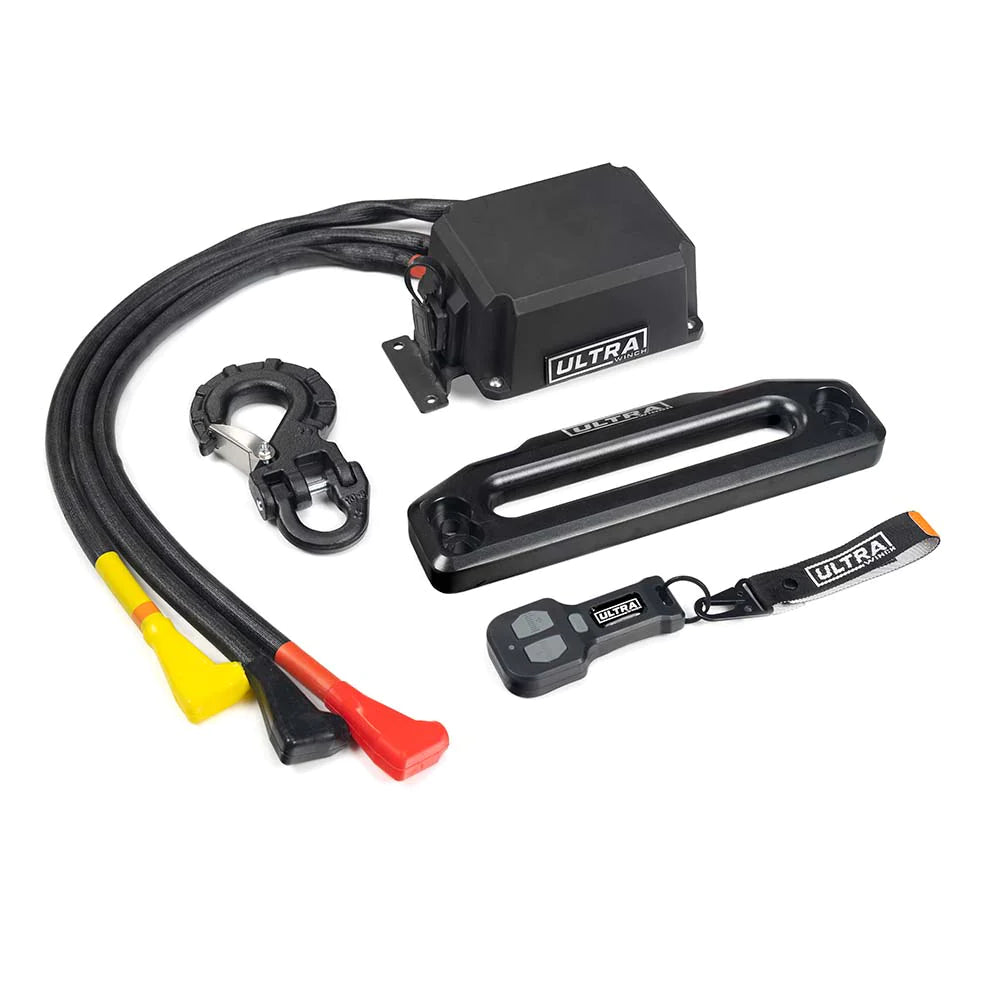

LONGER CONTROL BOX WIRES.

Heavy duty gauge wiring means longer length and less resistance allowing for hidden control box installation to the sides of the bull bar or even behind the grille! As there is no wireless dongle needed and an in-cabin wired controller is included, access to the box is rarely needed so you can place it where you want to!

EASIEST CLUTCH ADJUSTMENT - EVER.

Remove only four external hex bolts to freely rotate the clutch lever to a more accessible position. Commonly rotated 90ºCC for feet forward facing installation. No adjustment needed for feet down installs.

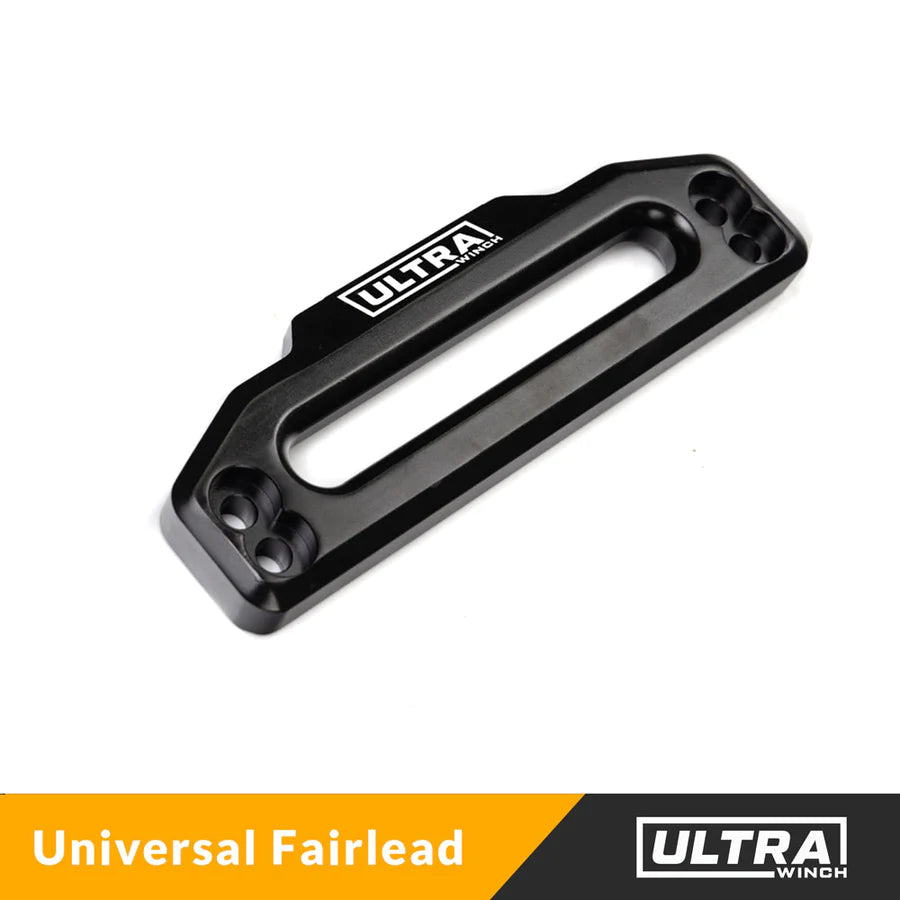

LOW FRICTION - ADJUSTABLE FAIRLEAD.

New and improved multi fit fair lead with two mounting positions to provide varying rope guidance offset to ensure the best configuration for your bull bar. Increased thickness with larger curved radiuses for more extreme angling and reduced friction.

THREE WAY - CONTROL.

With PDX, recoveries start when you press winch in with a permanently active inbuilt wireless receiver, not when you're searching for wireless dongles to plug into a control box buried in mud. For redundancy a 3.5M wired hand controller is also included.

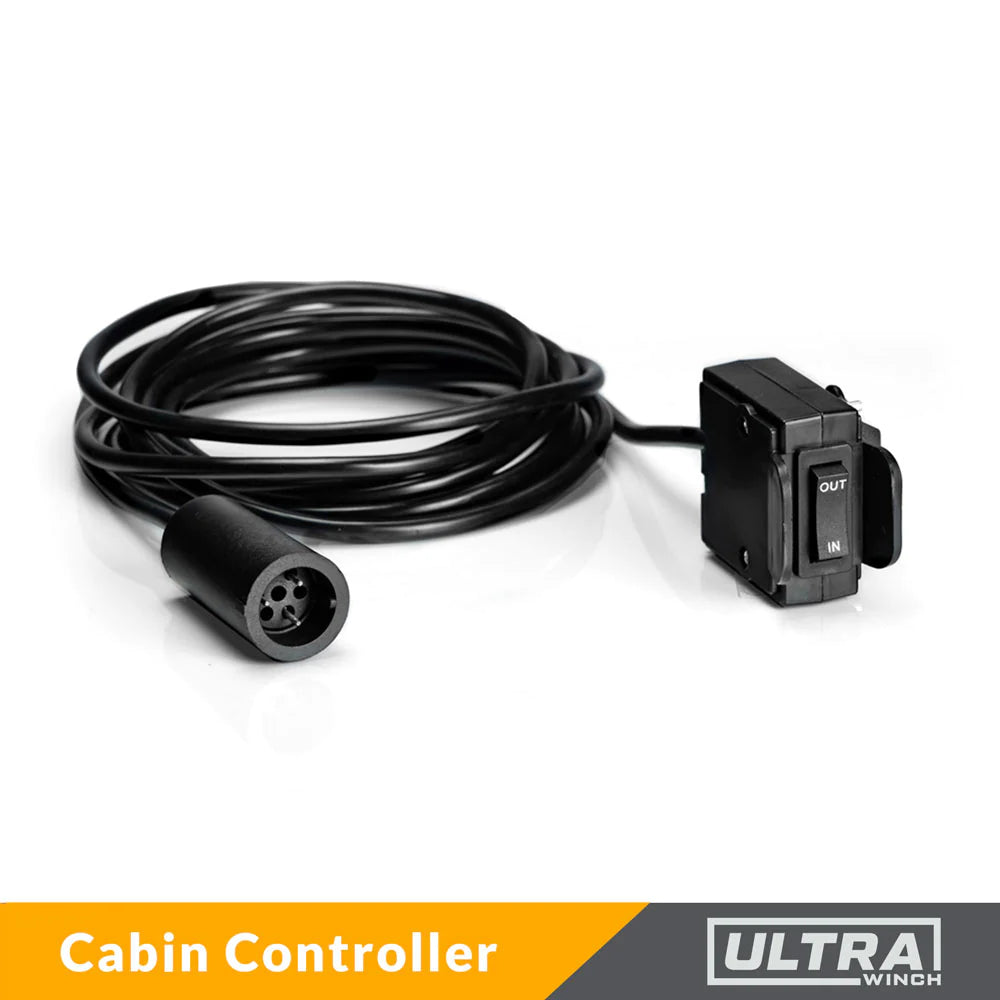

New Unique In Cabin Controller: Reliable, direct access from inside the car.

OUR STRONGEST ROPE YET.

Brace welded - solid eyelets means no elongations so your rope stays in one piece. 1500mm low friction, poly SLM sliding sheath offers reduces rope fraying over jagged rocks. Included heavy duty hook with large opening connects to tree protectors and soft shackles easily.

BEST WINCH WIRING - EVER.

MK4 brings unmatched heavy duty 50mm2 wiring with elegant black protective sheathing fitted, all over. These winches can draw fifty times higher amperage than a wall power outlet, if you don't find your winch wiring impressive nor will your motor or battery. Australian first.
Be Careful! Many winches claim huge horsepower motors, but a winch is only as powerful as it's battery supply and wiring!
