There are 2 Kits to suit the Toyota D4D KUN26/N70 Hilux.
The air intake pipe direction varies within the range from 2005 to 2015. Please select the correct application to suit your car from the photos provided.

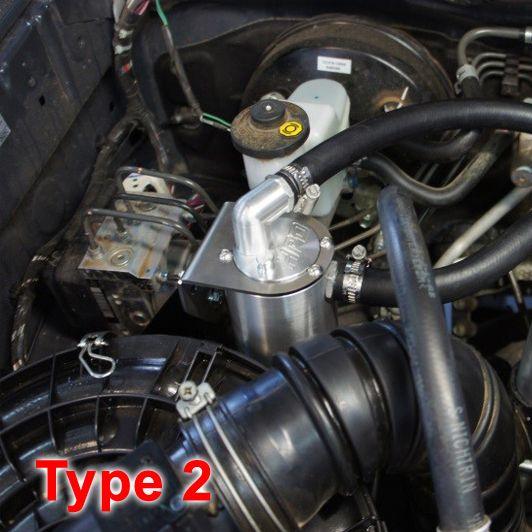

Type 1 kit Airbox outlet points to the firewall / Type 2 kit Airbox outlet points toward the motor.
Type 1 fits up to approx 2008 models, Type 2 is for 2008 onwards.
Another way to check is by a space between the airbox outlet and the brake master cylinder for a Type 2 kit install. Otherwise, a Type 1 kit fits on the inner guard.
NOTE: If no ABS is fitted on later model cars (ie SR model), Type 1 kit may be required
“Protect your investment fit HPD’s oil separator kit.”
HPD’s Australian-made billet CNC machined oil catch can / oil air separators have been designed to reduce the amount of oil from the engine's crank case breather entering the intake system.
The issue is with the oil entering the intake system on modern diesel engines fitted with EGR (exhaust gas recirculation) where the exhaust gas valve is commanded by the ECM (engine control module) to open and allow exhaust gasses back into the inlet mixing with the oil that’s been left as a film inside the inlet manifold, thus this process just keeps on repeating itself, causing the issue of the manifold being blocked or clogged reducing the airflow to the engine’s cylinders, resulting in lack of performance, black smoke, engine wear, and even engine failure.
HPD’s oil catch can / oil separators come in universal and complete kits with all required stainless steel laser cut bracketry, correct size hose tail fitting, washable internal stainless mesh filters, cut to size oil resistant hosing, bolts, nuts, washer, spring clamps and installation instructions for each vehicle.
Key Benefits:
- Reduces oil in the intake system
- Allows intercooler to work efficiently
- Eliminates carbon & oil build-up in the inlet manifold
- Keeps inlet ports and valves clean
- Reduces engine wear
- Reduces exhaust smoke
- Maintains economy
- Keeps air and map sensors clean
- Maintains engine performance
Kit features:
- Billet Aluminum Catch Can
- Internal stainless mesh filters
- Dipstick to check the oil level
- Simply unscrew the base to empty the oil
- 16mm Screw-in hose fittings
- Mounting brackets & hoses
