RDX Premium Electric Winch

Save 18%
Ultra WinchSKU: 95kRDX
No reviews

Price:
Sale price$899.00 Regular price$1,099.00

Pre-Order

Ships Australia-wide, tracked · Not sure it fits? Ask us

Buying for a business or club? Ask about trade pricing

Common questions
  • What size winch do I need? At least 1.5 times your vehicle's loaded weight. For most loaded dual cabs and wagons that means 12,000lb.
  • What's in the box? It varies. Some listings are winch only, so check whether the remote, rope, fairlead and hook are included.

Not sure it's the right part? Read: What size winch do I need for my 4x4?

RDX Series Premium Electric Winch

The Balanced Platform

The RDX Series is designed as a modern, all-purpose 12V recovery winch platform.
Same mounting architecture. Same installation footprint. Different performance outputs.

Choose the output level that suits your vehicle, electrical system and recovery style.

Platform Overview

  • 12V DC low mount architecture
  • Sealed 3-stage planetary gearbox
  • Full automatic mechanical load holding brake
  • 90° rotatable clutch housing
  • Wireless + 3.6m wired remote included
  • 254mm x 114.3mm mounting pattern
  • Synthetic rope fitted
  • IP-sealed electrical system

This platform is consistent across all variants. Only the motor output and gearing differ.

What's in the Box

  • RDX Premium Electric Winch
  • Rugged Wiring Harness with Isolator Switch
  • Control Box with Rugged Solenoid
  • Wired Handheld Remote
  • Wireless Remote
  • Fairlead Hawse
  • Heavy Duty Hook
  • Orange Breather Valve Hose Kit
  • Mounting Bolts
  • RDX User Manual & Wiring Guide

TECH SPECS

General
Voltage 12V DC (24V is available)
Control Wireless Remote & 3.6m Wired Remote
Braking Full Automatic Load Holding - Mechanical Locking
Clutch Type Lift & Turn 90° to Engage/Disengage
Drum Size 64 x 224mm
Mounting Bolt Pattern 254mm x 114.3mm
Rope Type Synthetic

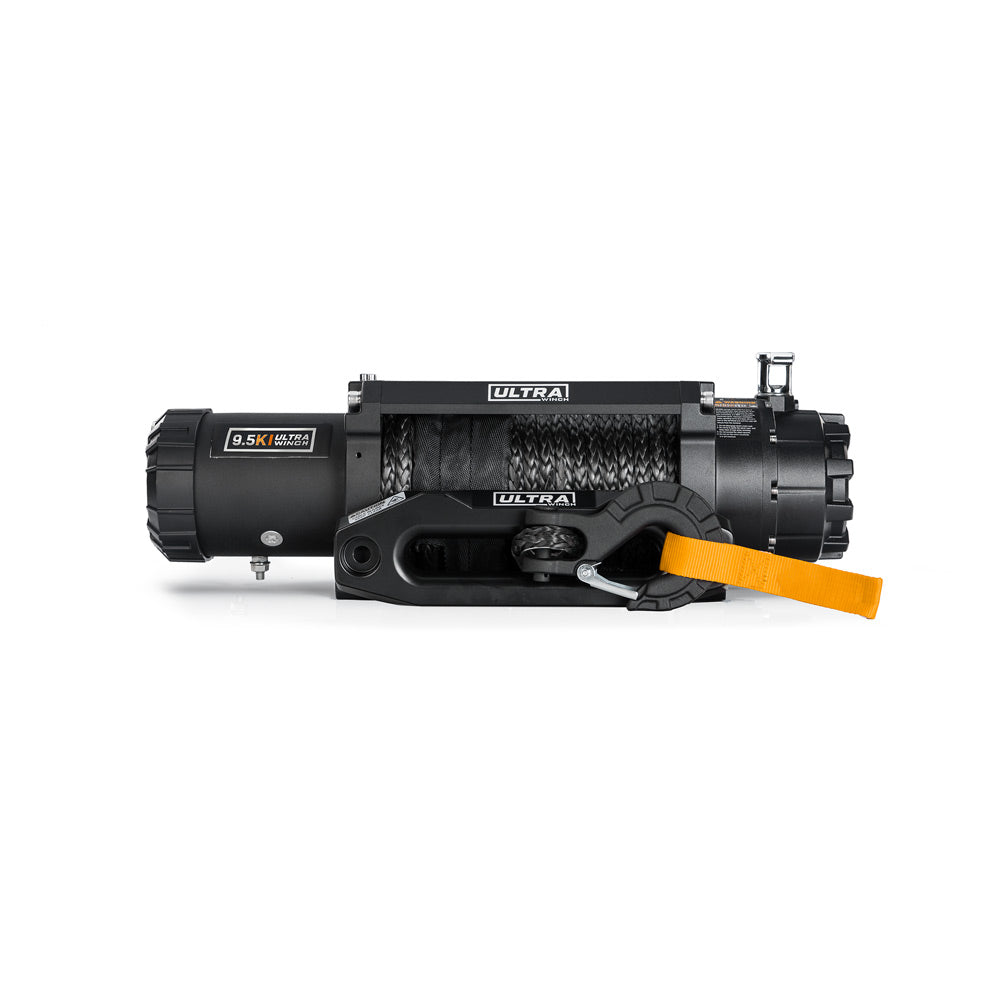

RDX 9.5K
Rated to 9,500lb (4.31 tonnes)
Rope Length & Rating 9.5mm x 25 metres - MBS 17,500lbs
Gear Train 3 Stage Planetary, Sealed, 179:1 Ratio
Motor 6.0hp (4.5kw), Series Wound, Sealed
Weight 21kg with Synthetic Rope

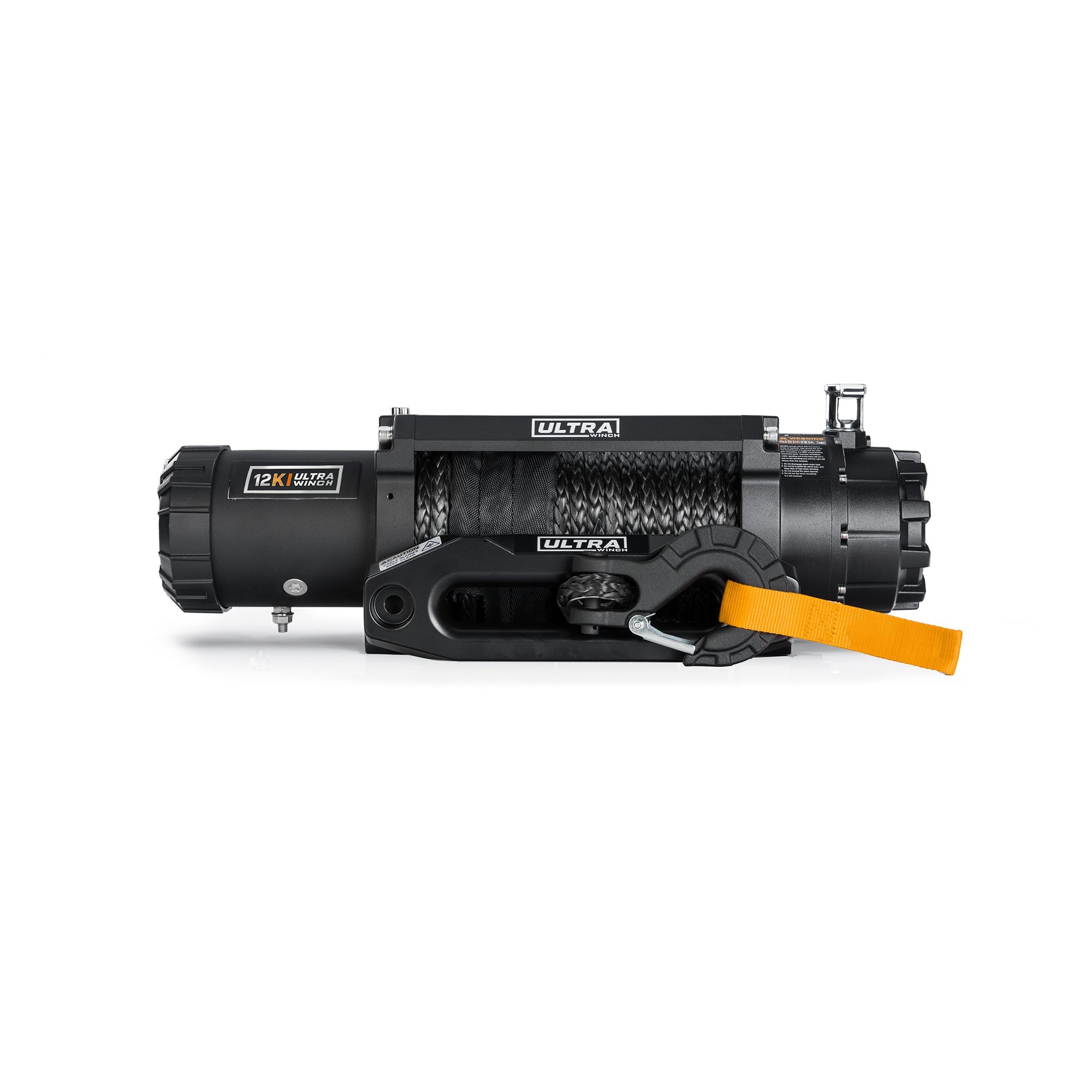

RDX 12K
Rated to 12,000lb (5.45 tonnes)
Rope 10.0mm x 25 metres - MBS 20,900lbs
Gear Train 3 Stage Planetary, Sealed, 216:1 Ratio
Motor 6.0Hp-4.5KW, Series Wound, Sealed
Weight 21.5kg with Synthetic Rope

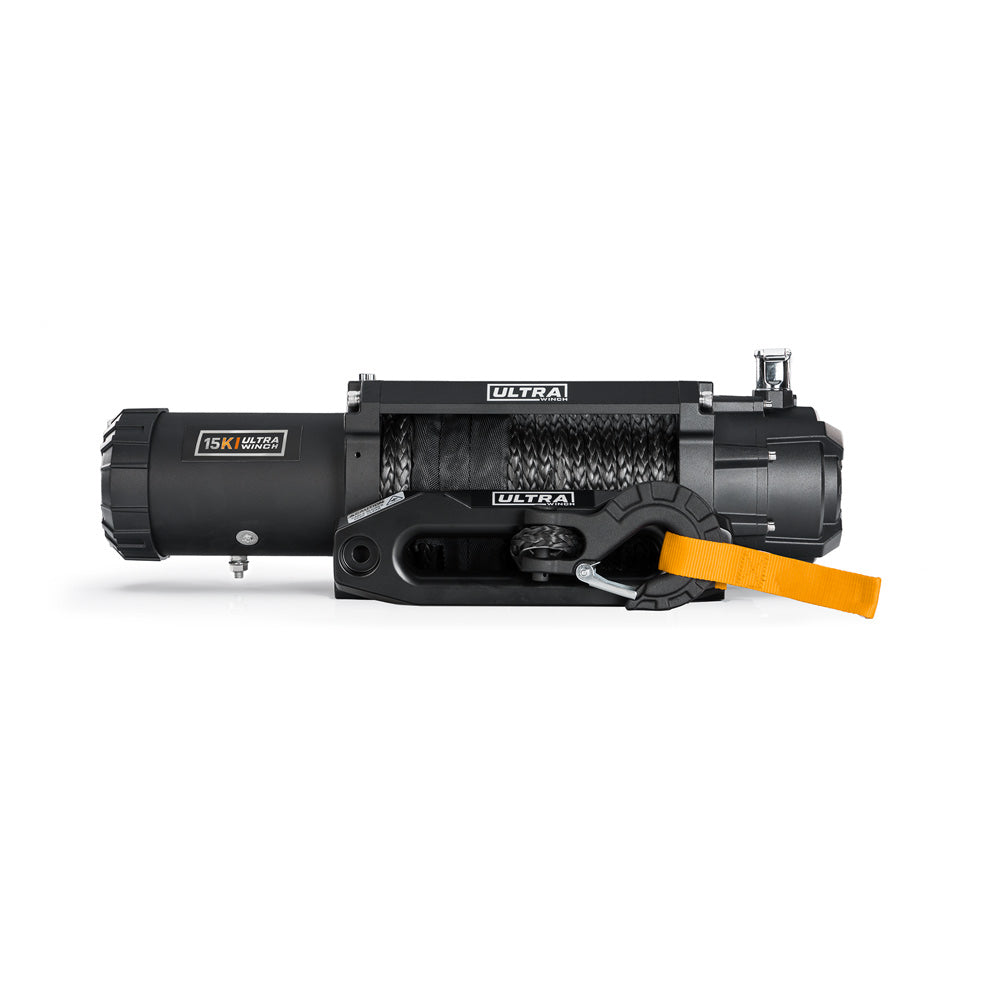

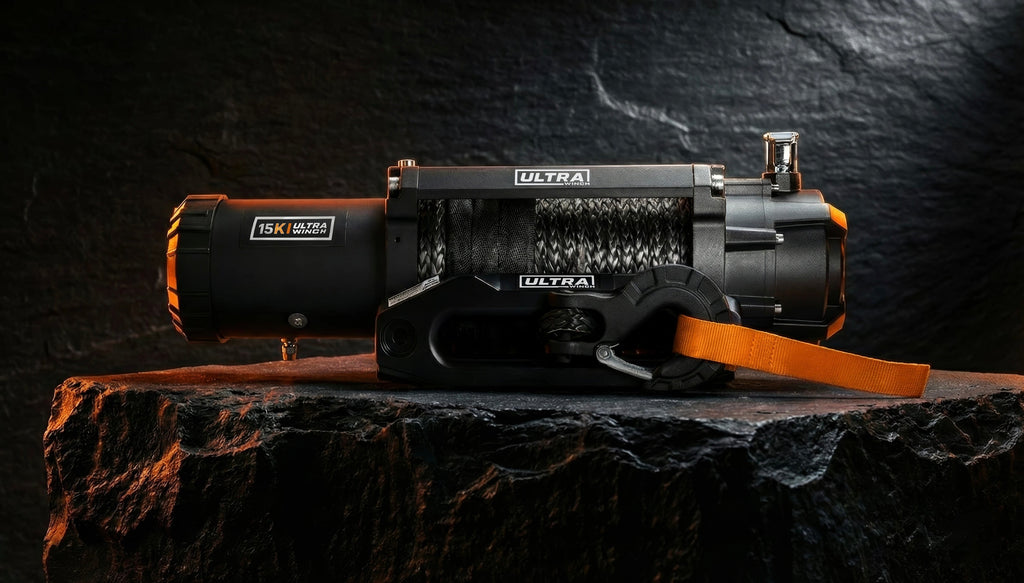

RDX PRO 15K
Rated to 15,000lb (6.81 tonnes)
Rope 10.5mm x 25 metres - MBS 23,500lbs
Gear Train 3 Stage Planetary, Sealed, 216:1 Ratio
Motor 7.0Hp-5.2KW, Series Wound, Sealed
Weight 23kg with Synthetic Rope
RDX PRO 9K
Rated to 9,000lb (4.09 tonnes)
Rope 9.5mm x 25 metres - MBS 17,500lbs
Gear Train 3 Stage Planetary, Sealed, 79:1 Ratio
Motor 8.0hp (6.0kw), Series Wound, Sealed
Weight 23kg with Synthetic Rope


LINE SPEED & POWER

RDX 9,500 lb (4315 kg)
Line Pull lbs (kg) Line Speed m/min (inch/min) Current (Amps)
0 12.3 (40.3) 60
3,000 (1360) 4.8 (15.7) 140
6,000 (2725) 3.7 (12.1) 190
9,500 (4315) 2.6 (8.5) 350
RDX 12,000 lb (5450 kg)
Line Pull lbs (kg) Line Speed m/min (inch/min) Current (Amps)
0 9.5 (31.2) 60
3,000 (1360) 4.6 (15.1) 135
6,000 (2725) 3.5 (11.5) 220
9,000 (4090) 2.5 (8.2) 285
12,000 (5450) 1.6 (5.2) 340
RDX PRO 15,000 lb (6810 kg)
Line Pull lbs (kg) Line Speed m/min (inch/min) Current (Amps)
0 9.2 (30.2) 65
4,000 (1815) 4.3 (14.1) 180
8,000 (3630) 2.7 (8.9) 250
12,000 (5450) 1.8 (5.9) 320
15,000 (6810) 1.2 (3.9) 390
RDX PRO 9,000 lb (4090 kg)
Line Pull lbs (kg) Line Speed m/min (inch/min) Current (Amps)
0 24.5 (80.4) 70
3,000 (1360) 6.8 (22.3) 180
6,000 (2725) 4.5 (14.8) 300
9,000 (4090) 3.1 (10.2) 420
